Raised Floor Systems
WHAT IS RAISED FLOOR?
Raised Floor (Floor) System all kinds of electricity, water, ventilation, telephone, wiring, plumbing, etc. These are the systems that enable these changes to be made easily, inexpensively and quickly in order to create a volume between the base concrete and the newly created floor in areas where all materials originating from the works are used intensively and at the same time, where necessary and continuous changes are required. We can also say that this system is produced with the aim of facilitating intervention when needed, by providing the appropriate volume for the materials to pass through the base. The best raised floor, the cheapest raised floor.
Raised Floor under normal conditions;
600 x 600 mm, 30 mm and 40 mm thick panels
The feet produced for the infrastructure produced in the desired size between 10 cm — 100 cm and
It consists of various accessories designed to be used when needed.
Raised Floor panels; The material used in the lower coating differs according to the material used in the upper coating and the essence used in the panels.
Top Coating Options of Raised Floor Panels;
PVC — Vinyl
laminate
Ceramic
Granite
Galvanized Sheet
encapsulate
Aluminium foil
Raised Access Floor
Raised Floor Panel Substrates;
Galvanized Sheet
Aluminium foil
Raised Floor Essences;
Chipboard Core
Calcium Sulphate Extract
Concrete Core
Fiber Concrete Core
Feet Used in Raised Floor Infrastructure;
Between 100 mm and 1000 mm (various heights),
Depending on the cable, electrical pans, cooling installations or various installation densities to be used in the infrastructure, the desired dimensions can be produced, allowing to create areas that can be intervened.

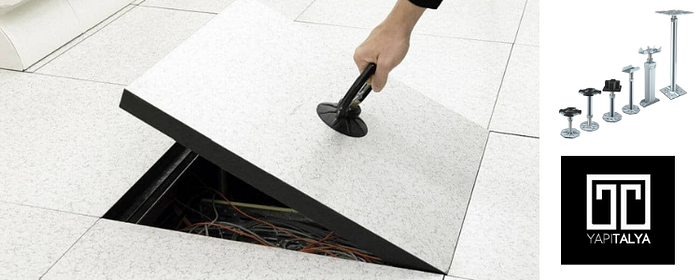

Raised Floor Feet;
It is divided into 2 as Belted Applications and Unbelted Applications.
In addition, Seismic raised floor infrastructure and box profile raised floor infrastructure are also available.

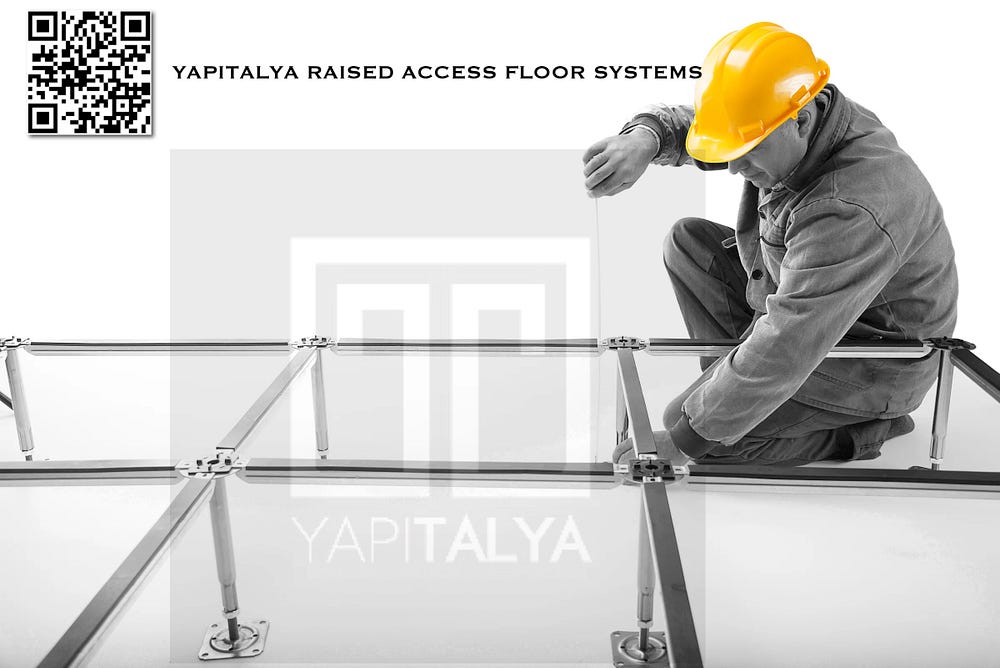

Girdle (Stringer): It is the name of the profile that is “U” shaped to the head parts of the infrastructure legs, with plastic bands and snap nails, and is mounted by screwing to the heads of the infrastructure legs. In other words; The feet of the Raised Floor infrastructure are fixed to each other with this product. Belts are recommended for heights of 20 cm and above. Possible interventions arising from the lack of visibility of the infrastructure on the modular floor are also produced to minimize the risks of falling and overturning.
Raised Floor Systems can be needed in many areas.
Some of the usage areas;
Modern Offices
Banks
IT Centers
Hospitals
universities
classrooms
System Rooms
Panel Rooms
Substations
and allows us to create a practical, stylish space in many areas.
